Product Overview

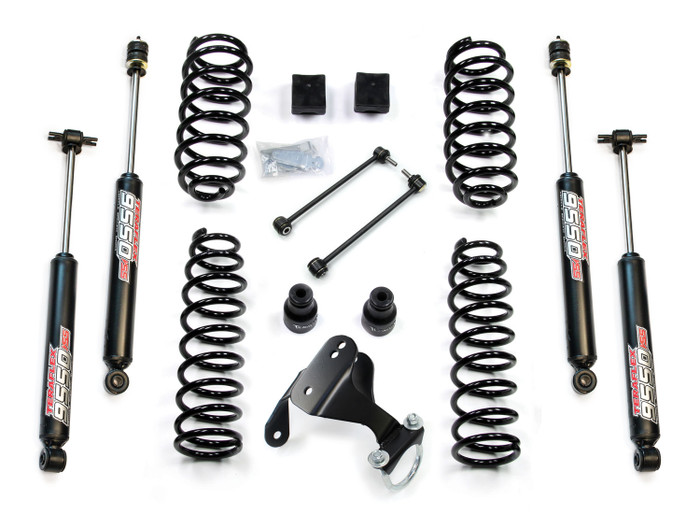

TeraFlex 2.5" Coil Spring Base Lift Kit w/9550 VSS Twin Tube Shocks (JK 2-Door)
Engineered with drivability in mind, the ultra-simple TeraFlex JK 2dr: 2.5” Coil Spring Base Lift Kit comes with the basic components required to fit larger tires for increased ground clearance and better off-road capability without compromising on-road handling.
Every TeraFlex suspension system is engineered with drivability and performance in mind. Properly developed suspension geometry, roll center, and load tuning ensures that all factory stability controls remain functional and within the parameters that Jeep originally engineered into the vehicle.
Not only do TeraFlex kits drive straight, but they will crawl over anything to get you there and back!
We recommend Falcon Performance Shocks or TeraFlex 9550 VSS Twin-Tube Shocks. These are the only shock absorbers engineered to work with TeraFlex lift coil springs to improve both compression and rebound for optimal vehicle stability. 2.5” Coil Spring Base Lift Kits are offered with TeraFlex 9550 VSS Twin-Tube Shocks, with shock extensions, or without shock absorbers or extensions. Falcon Performance Shocks are available separately.
INCLUDES
• 2.5” Lift Coil Spring Kits (JK2 Front: # 1853052 & JK2 Rear: # 1854102)
• Rear Track Bar Axle Bracket Kit (2.5” Lift) (# 1954776)
• 2.75" Bump Stop Extension Kit – Front Upper (# 1953800)
• 2.75” Bump Stop Strike Pad Kit – Rear Lower (# 1954700)
• 10.75” Rear Sway Bar Link Kit (2.5” Lift) (# 1744500)
• Coil Spring Retainer – Rear Lower (# 4954300)
• Rear Brake Line Relocation Kit (# 4304400)
• All necessary hardware
• And more
• 9550 VSS Twin-Tube Shock Kit (2.5” Lift) (# 1545100)
VEHICLE FITMENT INFO
Fits:
• JK Wrangler (2-Door)
Specs:
• Lift Height: 2.5”
• Max Tire Diameter: 35”
PRODUCT NOTES
• Caster correction recommended, but NOT required – NOT INCLUDED. Recommended components: Sport Control Arm Kit (4-Arm: # 1254000 or 8-Arm: # 1258000), or adjustable 8-Arm Short Control Arm Kit (Alpine: # 1415610 or Alpine IR: # 1415611), or adjustable 8-Arm Long Control Arm & Bracket Kit (Alpine: # 1315010 or Alpine IR: # 1315011), and/or HD Forged Adjustable Track Bar(s) (Front: # 1753418 and/or Rear: # 1754418).
• Requires aftermarket wheels w/ 4.75” backspacing or less – or Offset Wheel Adapters (# 1055000) for stock wheels – NOT INCLUDED.
• 2012–2018 JK Wrangler/Unlimited models require Exhaust Spacers (# 2610000) or other exhaust modification for proper driveshaft clearance if front extended shock length is greater than 24.5”.
• Requires longer shocks or Shock Extensions (Front Upper: # 1553800 and Rear Upper: # 1554800) (NOT INCLUDED in base kit) – we recommend Falcon Performance Shocks or TeraFlex 9550 VSS Twin-Tube Shocks.
